Rail pads are parts of train tracks that have a big impact o the quality of your train trips. Though not something you often reflect upon the rail pads are instrumental in providing a cozy and secure ride. Grasping the essence of rail pads and their roles can help you better grasp the intricacies of railway engineering.
What are Rail Pads?

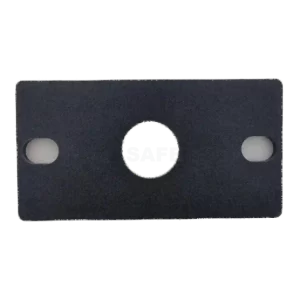

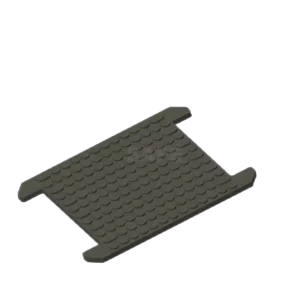

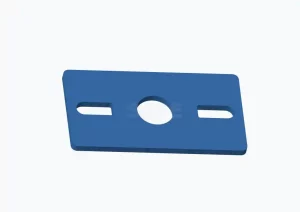

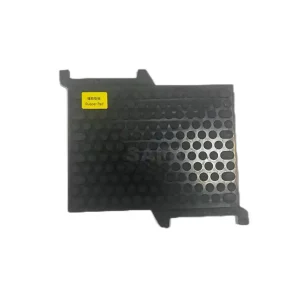

Resilient tie pads or elastic pads known as rail pads are components positioned between the sleepers and rails of a railway track system. They are more than just basic materials but meticulously engineered parts that serve various crucial roles within the railway infrastructure.
Composition and Material of Rail Pads
Rail pads are commonly crafted from materials that are not metallic such as：
- Resilient tie pad/elastic pad
- Rubber
- High-density polyethylene (HDPE)
- Ethylene-vinyl acetate (EVA)
- TPEE
- TPU
- The specific material used can vary depending on the requirements of the railway line and the desired performance characteristics. Some rail pads might also include metal components to enhance their performance or durability.
Functions of Rail Pads
These pads have several key roles:
- Providing cushioning:Rail pads provide a layer of cushioning between the rail and the sleeper, helping to absorb the impact of trains.
- Reducing vibration:They are designed to reduce the transmission of vibrations from the train to the track structure and vice versa.
- Minimizing noise:Rail pads can help to minimize noise generated by the train.
- Ensuring electrical insulation:In some cases, rail pads also provide electrical insulation between the rail and the sleeper.
- Maintaining track stability:Rail pads contribute to the overall stability of the track by helping to distribute the load evenly.
- Preventing rail seat abrasion: Rail pads act as a cushion, reducing friction between the rails and the rail seat and preventing abrasion.
What Role Do Rail Pads Play in Ride Smoothness?
Rail pads serve to enhance the ride quality by managing forces and pressures in the railway system effectively; these basic components play a vital role in ensuring a comfortable and steady journey for both the train and its travelers.
Vibration Dampening Capabilities
Rail pads play a role in ensuring a smooth ride by absorbing vibrations effectively as trains travel along the tracks and prevent discomfort caused by bumpy rides resulting from vibrations transmitted through the rails into the track structure.
Rail pads made of substances such as rubber or dense polymers are created to absorb and disperse a portion of the vibration energy present in train tracks to enhance passenger comfort by reducing the impact of vibrations and ensuring a smoother ride experience.
Influence on Track Stability
Rail pads not reduce vibrations but also contribute to the stability of the track system by evenly spreading the weight of the train on the sleeper and preventing track deformations or damages effectively maintaining rail alignment and positioning for a smooth and stable ride experience for passengers throughout the journey.
How Do Rail Pads Enhance Passenger Comfort?
Rail pads serve a purpose beyond just providing a comfortable journey; they also help enhance passenger comfort by minimizing noise and vibration. Two key factors that can cause discomfort during travel and make the overall experience more pleasant for both you and your fellow passengers.
Reduction of Noise Levels
Using rail pads has an important advantage; it makes train rides quieter by reducing noise levels caused by the interaction between train wheels and rails as trains move along the tracks.This noise can be quite bothersome for passengers during journeys.Rail pads work by absorbing some of the vibration energy produced by the train.This leads to a peaceful travel experience and makes the ride more comfortable for passengers.
Minimizing Vibrations Felt by Passengers
Rail pads not decrease noise but also serve to reduce the vibrations that passengers experience during train travel. These pads have the ability to dampen vibrations caused by the trains motion and ensure that a lesser amount of these vibrations are transferred to the train cars. This results in an more comfortable ride for passengers as the passenger compartment is shielded from a significant portion of the vibration energy. Ultimately these rail pads contribute to creating a pleasant and relaxing travel experience for passengers on board.
Contribution to Overall Train Performance
Rail pads play a role in enhancing the performance of trains by offering a smoother and more consistent track surface that leads to improved stability and efficiency during travel.They help reduce wear and tear on train components and ultimately ensure reliable train journeys making them an indispensable part of the railway network.
Why is the Selection of Rail Pads Crucial?
Selecting the rail pads is crucial for keeping a smooth ride and guaranteeing the safety and effectiveness of the entire railway networks operations. Picking the pad tailored to a railway lines specific needs can significantly influence the tracks overall performance in the long run.
Factors to Consider When Choosing Rail Pads
When deciding on which rail pads to select for your project or task at hand. Make sure to take into account important factors.
- Load:The weight of the trains that will travel on the track is a key factor. Heavier trains require more robust pads to handle the added stress.
- Speed:High-speed railway lines require pads designed to withstand increased stresses and vibration frequencies.
- Environmental conditions:Rail pads must be resistant to varying temperatures, moisture, and other environmental factors.
- Material Properties: Static stiffness and impact attenuation are important properties of rail pads that must be considered.
- Track type:Different types of tracks require different types of pads. For example, tracks with concrete sleepers have different needs compared to those with wood or composite sleepers.
Consequences of Inappropriate Rail Pad Use
Selecting a rail pad could result in various problems that may impact your travel experience.
- Reduced ride quality:Inadequate pads might not effectively dampen vibrations, resulting in a bumpy ride.
- Track instability:Incorrect pads might not properly support the rail, causing track misalignment and increasing the risk of accidents.
- Increased maintenance:Poorly performing pads can lead to premature wear and tear on both the track and the trains, causing additional maintenance.
- Increased noise and vibration:Incorrect pads may fail to reduce noise and vibration, leading to a less comfortable passenger experience.
SAFE: A Reliable Rail Pad Supplier
SAFE Rail Fastening System (located in Zhejiang Province in China) specializes in producing rail fastening systems that include rail pads and is strategically positioned at the core of China’s manufacturing hub.
Overview of Safe’s Product Offerings
SAFE provides a range of products for rail fastening systems that include;
- Resilient tie pads and elastic pads
- Rubber pads
- Height adjustment pads
- Rail gauge baffles and insulators
- Rubber boot
SAFE’s production lines and laboratories are equipped with over 100 sets of advanced international automation and testing equipment to ensure that each product meets high industry standards. Their annual output is around 5 million sets of rail fastening systems.
Industry Reputation and Certifications
SAFE is a producer that has invested over 50 million RMB and occupies an area of more than 50 000 square meters.Large automated 3 dimensional warehouse capable of handling up to 30 000 tons are part of their infrastructure. Additionally the company has acquired certifications as a demonstration of their dedication to maintaining high standards and dependability.
- ISO9001 Quality Management System Certification
- ISO14001 Environmental Management System Certification
- IS045001 Occupational Health Management System
- CRCC Railway product certification
FAQs About Rail Pads and Ride Quality
To deepen your grasp on the significance of rail pads lets tackle a few queries;
How do rail pads affect train speed?
Rail pads may not have an impact on the speed of trains but play a significant role in maintaining track stability essential for safe operation at higher speeds by ensuring proper alignment and reducing the risk of instability or accidents.
Can rail pads be customized for different tracks?
Rail pads are able to be tailored according to the types of tracks they will be used on by adjusting the material used in them as well as their thickness and design features to meet the unique needs of various rail systems like high speed rail networks and conventional railways for heavy cargo transportation or urban metro systems and intercity railways.
Are there maintenance requirements for rail pads?
Regular checks should be conducted for signs of wear and tear in rail pads to uphold their durability amidst environmental factors and frequent usage that could result in damage. By performing inspections promptly and addressing any necessary replacements or repairs swiftly helps in sustaining the smoothness of rides and ensuring track safety.
