S21 Fastening System

Scope：High-speed

Specification：S21 Fastening System

Features：Concrete sleeper, Long service life, Reduces operational costs.

Enforce the standard：EN 13481-2 C/D

Chat Now

S21 Fastening System

Scope：High-speed

Specification：S21 Fastening System

Features：Concrete sleeper, Long service life, Reduces operational costs.

Enforce the standard：EN 13481-2 C/D

Chat Now

S21 Fastening System

Scope：High-speed

Specification：S21 Fastening System

Features：Concrete sleeper, Long service life, Reduces operational costs.

Enforce the standard：EN 13481-2 C/D

Chat Now

Product Description

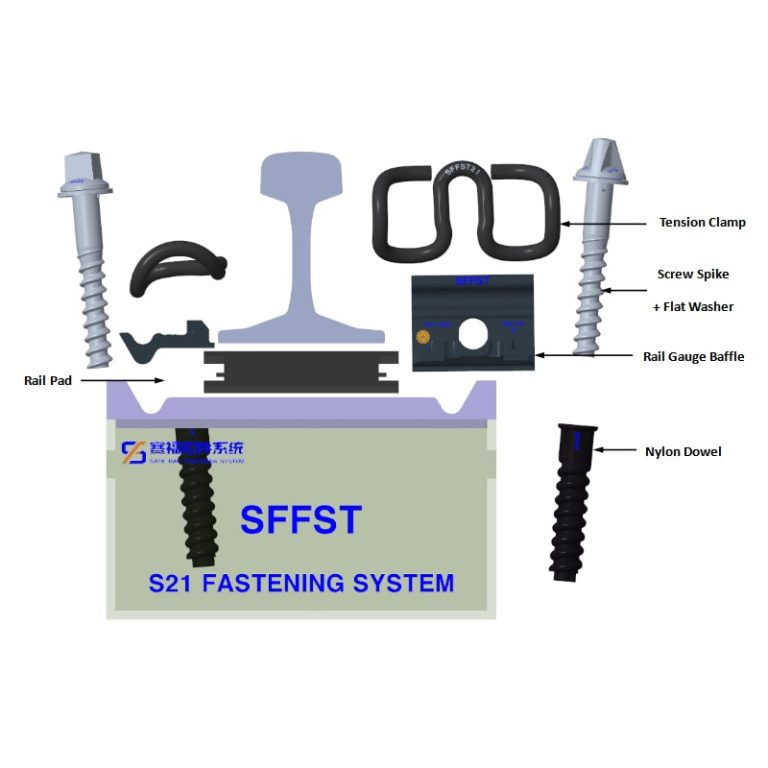

I. Components

SFFST 21-Tension Clamp,

sffst 21k -12-Rail Gauge Baffle,

Ss35/DHS35 Ø24X160+ULs7-Screw Spike+ Flat Washer: Fasten the components together.

xxx/175/y-Rail Pad

sdu25-Nylon Dowel

Components of single sleeper

No.	Item	Specification	Quantity/Pcs	Note
1	Tension Clamp	SFFST 21	4
2	Screw Spike + Flat Washer	Ss35/DHS35 Ø24X160+ULs7	4
3	Rail Gauge Baffle	sffst 21k -12	4
4	Rail Pad	xxx/175/y	2
5	Nylon Dowel	sdu25	4

II. Characteristics

Robust design: Can withstand heavy loads.
Good vibration damping: Reduces noise and wear.
Reliable electrical isolation: Prevents interference.

III. Advantages

Durable: Long service life.
Low maintenance: Reduces operational costs.
Easy installation: Saves time and labor.

IV. Scope of Application

High-speed railways: Ideal for smooth and safe operations.
Conventional railways: Suitable for various track types.

Technical specification for S21 fastening system assembly

Design standard			*For specific information, please contact us.
No.	Item		Performance requirements		Test method	Note
1	Maximum locomotive axle load		*For specific information, please contact us.		*For specific information, please contact us.
2	Minimum curve radius		*For specific information, please contact us.		*For specific information, please contact us.
3	Design running speed		*For specific information, please contact us.		*For specific information, please contact us.
4	Clamping force		*For specific information, please contact us.		*For specific information, please contact us.
5	rail longitudinal resistant		*For specific information, please contact us.		*For specific information, please contact us.
6	Torsional resistance		*For specific information, please contact us.		*For specific information, please contact us.
7	Attenuation of impact loads		*For specific information, please contact us.		*For specific information, please contact us.
8	System fatigue	Gauge enlargement	*For specific information, please contact us.	*For specific information, please contact us.	*For specific information, please contact us.
		Change rate of rail longitudinal resistance	*For specific information, please contact us.		*For specific information, please contact us.
		Change rate of joint stiffness	*For specific information, please contact us.		*For specific information, please contact us.
		Change rate of clamping force	*For specific information, please contact us.		*For specific information, please contact us.
9	Electrical resistance		*For specific information, please contact us.		*For specific information, please contact us.
10	Effect of severe environmental conditions		*For specific information, please contact us.		*For specific information, please contact us.
11	Anti pulling-out force		*For specific information, please contact us.		*For specific information, please contact us.
12	Horizontal adjustment		*For specific information, please contact us.		*For specific information, please contact us.

Ⅴ. Installation and Maintenance

Proper installation:
When installing rail clips, strictly follow the installation instructions to ensure that the connection between the spring clip and the rail and other components is correct.
Avoid causing damage to the insulating layer during the installation process, such as scratches and collisions.
Ensure that the installation position of the insulating components is accurate to play its due insulating role.

Regular inspection and maintenance:
Regularly inspect the insulating performance of rail clips and deal with problems in a timely manner. Professional insulation testing equipment can be used for detection to ensure that the insulating performance meets the requirements.
Replace damaged insulating components in a timely manner to maintain the good insulating state of rail clips.
Clean rail clips and surrounding components to prevent dust, dirt, moisture, etc. from affecting the insulating performance.

Through the above methods, the insulation of rail clips can be effectively guaranteed and the safety and reliability of the railway system can be improved.
